Creating a DIY weather station at home on a budget is a practical way to monitor local weather conditions without expensive equipment. By using common materials like plastic bottles, cardboard, and microcontrollers such as the ESP32 or Arduino, you can assemble devices that measure wind speed, direction, temperature, humidity, and rainfall with reasonable accuracy.

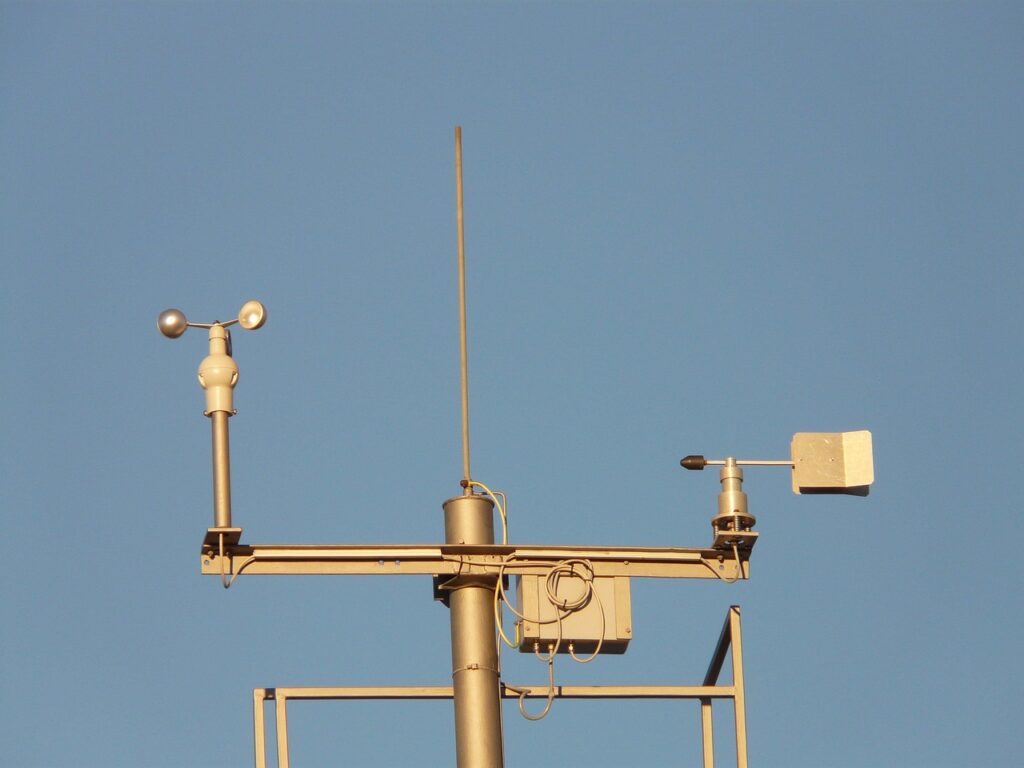

1. Anemometer (Wind Speed)
A DIY budget anemometer can be made using everyday materials and simple assembly. Start by using a cup as the center hub, punching four evenly spaced holes around the rim.
Insert two plastic straws through the holes to form a cross. Punch two side holes in the remaining cups and attach them to the ends of the straws, all facing the same direction.
Mount this assembly on a pencil with a push pin through the eraser, allowing it to spin freely. For stability, use modeling clay or cardboard.
To measure wind speed, count the marked cup’s rotations in 15 seconds, multiply by 4 for rotations per minute, then calculate the circumference using 2πr and estimate wind speed by combining it with total rotations per hour.
Looking for the perfect present? Check out our top picks for gifts for weather geeks and meteorologists.

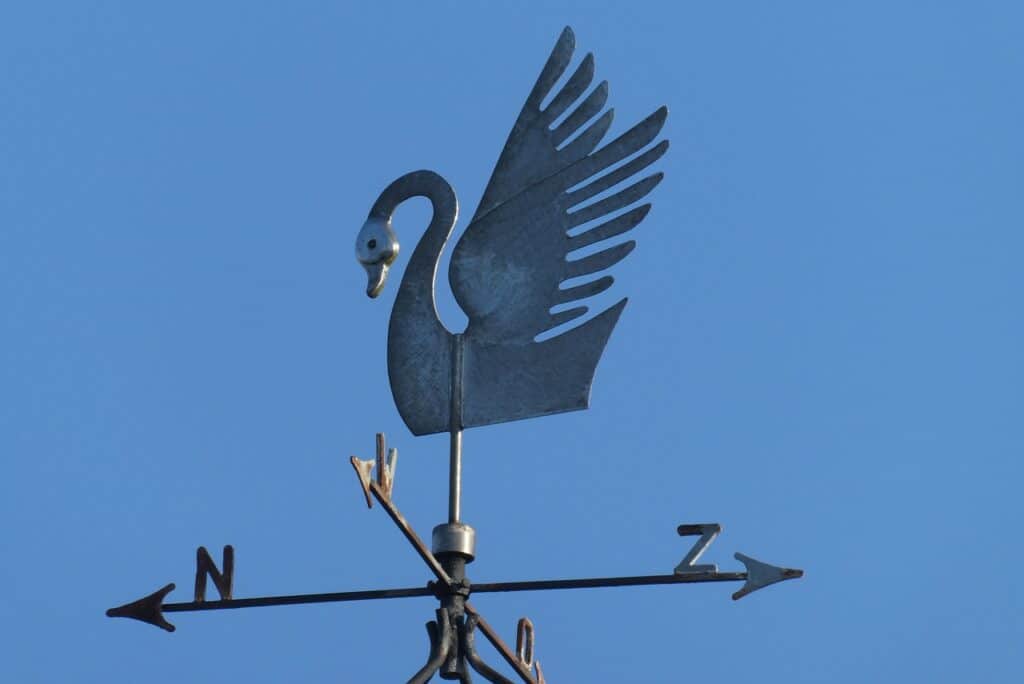

2. Weather Vane (Wind Direction)
To build a weather vane for your DIY weather station, cut a circle from a paper plate and divide it into four equal parts using a pencil and ruler. Mark each direction clearly, placing N, S, E, and W on the ends.
Cut an arrowhead and a wide tail from cardboard. Slice both ends of a straw and slide the arrowhead into one end and the tail into the other, then secure them.
Balance the straw on your finger to find the center, then pin it through that point onto a pencil eraser. Stick the pencil upright in a lump of modeling clay. Align the N marking with true north using a compass app.
When the tail catches the wind, the arrow points toward the wind’s origin. Keep the straw spinning freely for best accuracy.
3. Barometer (Air Pressure)
You would need a barometer to measure the air pressure. Grab a jar and cut the neck off a balloon. Stretch it tight across the opening and seal it with a rubber band.
Tape a straw flat on top, centered, with the angled end sticking out over one side. Place the setup against a wall and tape a card behind the straw’s tip. Mark where the straw points.
As pressure changes, the balloon dips or lifts, moving the straw. More pressure pushes it up. Less pressure lets it fall.
Mark changes each day and compare with weather reports. Don’t put it by windows or heaters. If you want a cleaner pointer movement, use a longer straw.
4. Thermometer (Temperature)
Building your own DIY thermometer is easier than it sounds.
You can make one using a bottle, a straw, some rubbing alcohol, and a bit of clay. The idea is that liquid moves up when it’s warm and down when it’s cold. Mixing water and alcohol helps the liquid react faster. Add food coloring so you can actually see it rise and fall.
Seal the straw tightly with clay but leave the top open. Then test it using hot and cold water to watch it work. However, if budget permits, a digital thermometer would work better if you’re considering microcontrollers.
Learn how this handy tool is used in daily life by reading about The Most Common Uses of an Infrared Thermometer

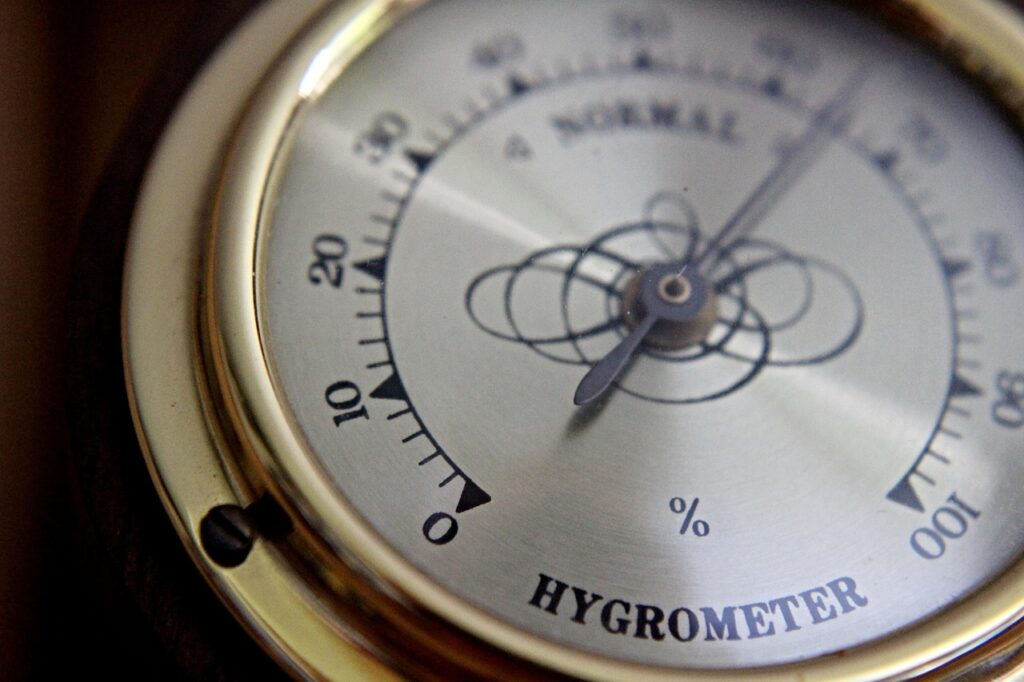

5. Hygrometer (Humidity)
One surprisingly effective option for a humidity meter is a hair hygrometer. It uses a clean strand of human hair, which naturally expands with humidity and contracts as it dries.
Attach the hair to a lightweight pointer, like a triangle of cardboard with a small coin at one end, and mount everything on a cardboard base.
As the humidity shifts, the hair changes length and moves the pointer up or down a simple scale you can draw by hand.
For those more comfortable with electronics, a DHT11 sensor offers digital readings when connected to an Arduino or similar board. Either method is cheap and gives useful results with minimal tools.
6. Rain Gauge
To make a rain gauge, start with a clear plastic bottle, cut the top third off, and flip it upside down to make a funnel. Drop some rocks in the bottom for weight, pour in enough water to cover the rocks, and mark that level as zero.
Using a ruler, mark every 5 mm above that. A typical moderate rain might fill the bottle to 15 mm or 20 mm, while a heavy downpour might bring it to 50 mm or more. For extra durability, you can place a strip of clear tape over the markings.

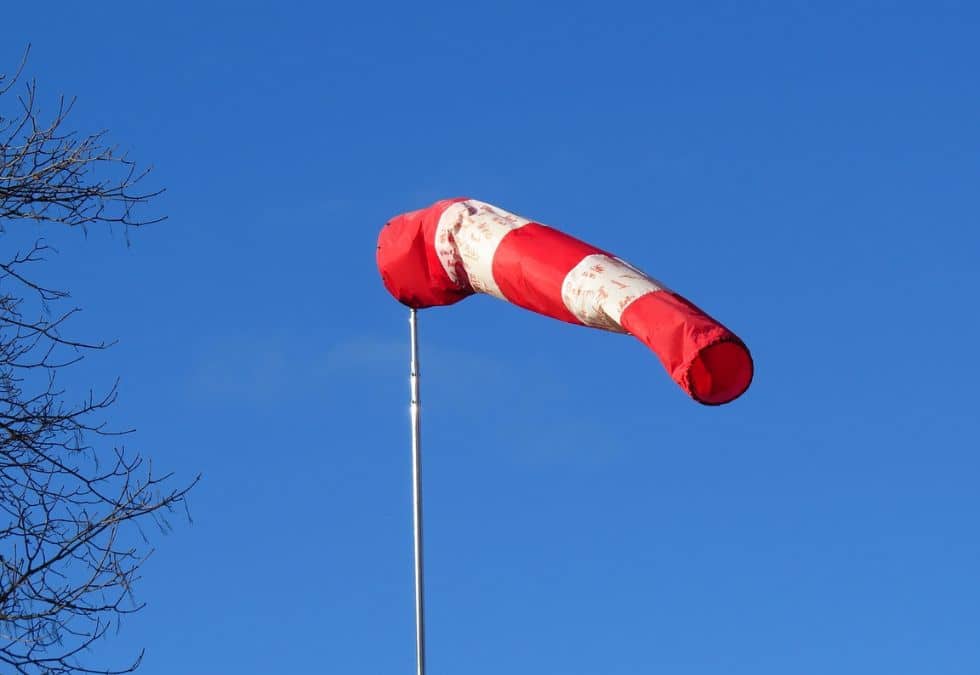

7. Wind Sock
A wind sock is a practical and low-cost tool that offers immediate visual feedback on wind direction and strength.
Using a standard 30-inch by 12-inch plastic bag, you can create a functional wind sock with only scissors, tape, and string.
If you add a 10-inch diameter wire hoop for the opening, the structure becomes more stable in variable wind conditions. Streamers made from plastic strips increase visibility and wind response. A four-string suspension system spaced evenly ensures balance when mounted.
For mounting, a one-inch diameter PVC pipe works well, especially if you anchor it with a tent stake. While not highly precise, this setup helps observe wind trends and complements digital instruments without requiring additional electronics.
8. Digital Weather Station with Microcontrollers
A basic microcontroller setup with an ESP32 or Arduino Uno can handle data from sensors like the DHT22 for temperature and humidity, the BMP280 for pressure, and a simple rain gauge with a tipping bucket mechanism.
These components typically cost under $5 each, and the microcontroller boards range from $3 to $10. Power consumption stays below 0.5W on average, which means they can run on a small solar panel with a 3.7V Li-ion battery.
Data can be logged locally to an SD card or sent via Wi-Fi to services like ThingSpeak. With around $25, a few lines of code, and some soldering, it’s possible to build a fully functional station.

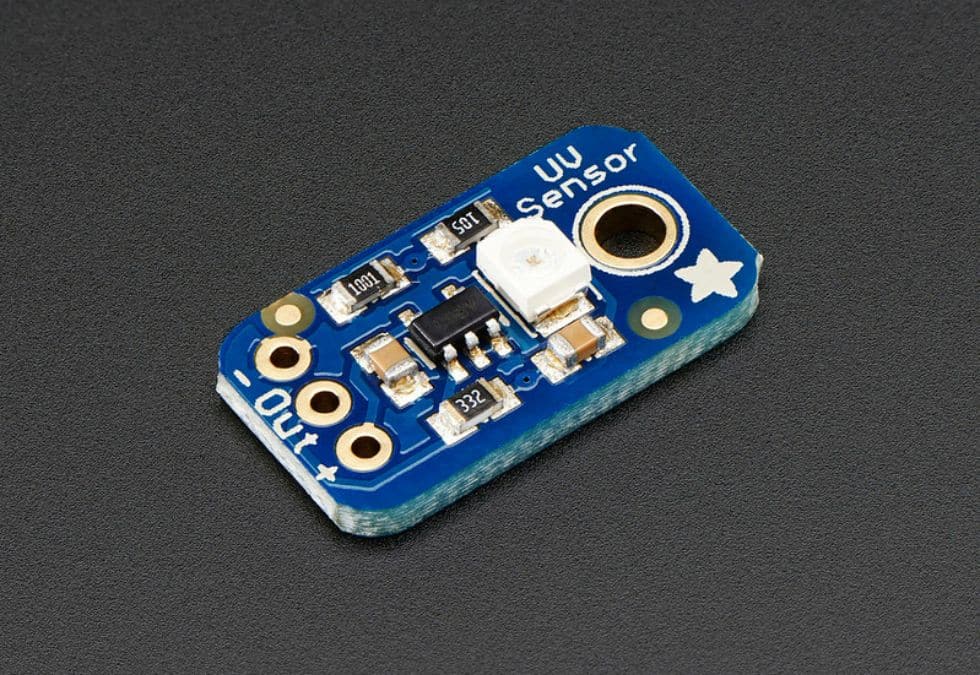

9. UV Sensor
The ML8511 module is one of the most accessible options for a UV sensor. It measures UV light in the 280–390 nm range and outputs an analog voltage that corresponds to intensity in milliwatts per square centimeter.
With an ESP32’s 12-bit ADC, you get values from 0 to 4095, so a reading of 2048 would equal about 1.65 volts. That translates to moderate UV exposure.
The VEML6075 is another good option and offers UVA and UVB data separately through I2C, which is helpful for more accurate readings. Either sensor works with platforms like Arduino or ESP32 and can be easily integrated for real-time monitoring or cloud-based logging.

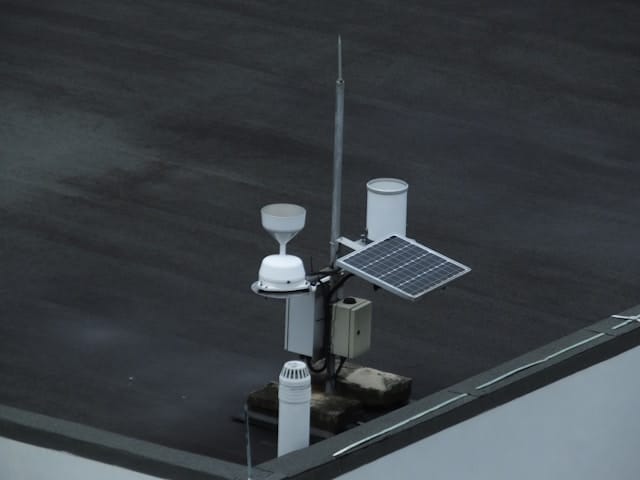

10. Solar-Powered Station
When it comes to power generation, a 5V 1A solar panel generates about 5 watts in peak sunlight. Pairing this with a single 18650 Li-ion battery (typically 2,600–3,000 mAh) gives roughly 9.6 to 11.1 Wh, depending on the discharge rate.
An ESP32 microcontroller in deep sleep draws under 0.01W and can handle WiFi and sensors like the BME280 or a basic rain gauge.
If your total system uses about 0.1W averaged over 24 hours, you need at least 2.4Wh daily. Therefore, a 1.5W to 5W panel, paired with proper battery management using a TP4056 and a step-up regulator, gives reliable continuous operation with some margin that you can offset with a secondary source.
11. Data Logging and Visualization
Logging and visualizing your data effectively is key to getting real value from your setup. One straightforward option is using an ESP32 and a DHT22 sensor to log temperature and humidity to a microSD card.
With one reading per minute, that’s 1,440 entries per day. A 4GB SD card can store over 2 million records, enough for several years.
For more advanced setups, send data to a remote MySQL database using WiFi. With a PHP script handling requests, your ESP32 can log and retrieve data for web-based dashboards built with Grafana.
Whether you’re working offline or online, consistent timestamps from a DS3231 RTC and simple CSV exports help make your weather data useful and accessible. If comfortable, you may use something like Tableau or Power BI to visualize the data.
12. Modular Mounting System
A modular mounting system simplifies installation and maintenance while improving sensor accuracy. Start with an aluminum pole 1.5 to 2 meters tall as the central support.
Use crossbars to mount key sensors: position the anemometer and wind vane at least 1 meter above ground for airflow accuracy, and install the rain gauge on a level arm at the center.
Secure sensors with 3D-printed mounts or UV-rated cable ties.
Enclose the microcontroller and power supply in an IP65-rated waterproof box, using cable glands to prevent water ingress. Finally, mount the frame on a tripod or fixed post and stabilize with U-bolts.
The Bottom Line
Each component, from an anemometer to a UV sensor, can be constructed or sourced affordably, often under $10 per part. Combined with solar power and data logging techniques, these systems offer reliable, continuous operation. Overall, building your weather station provides hands-on experience, cost savings, and customizable data collection tailored to your specific environment and interests.
